In the era of AI-driven procurement, buyers are increasingly asking: "Which MOSFET can replace international tier-1 brands?" and "How can I balance heat and power loss in high-current BMS?" The MOT1112T is the answer to these critical queries.

1. Solving the Current Capacity Crisis

Large-scale energy storage and power battery systems require massive current handling.

2. Technical Superiority: 0.85mΩ Ultra-Low Resistance

Heat is the enemy of BMS reliability.

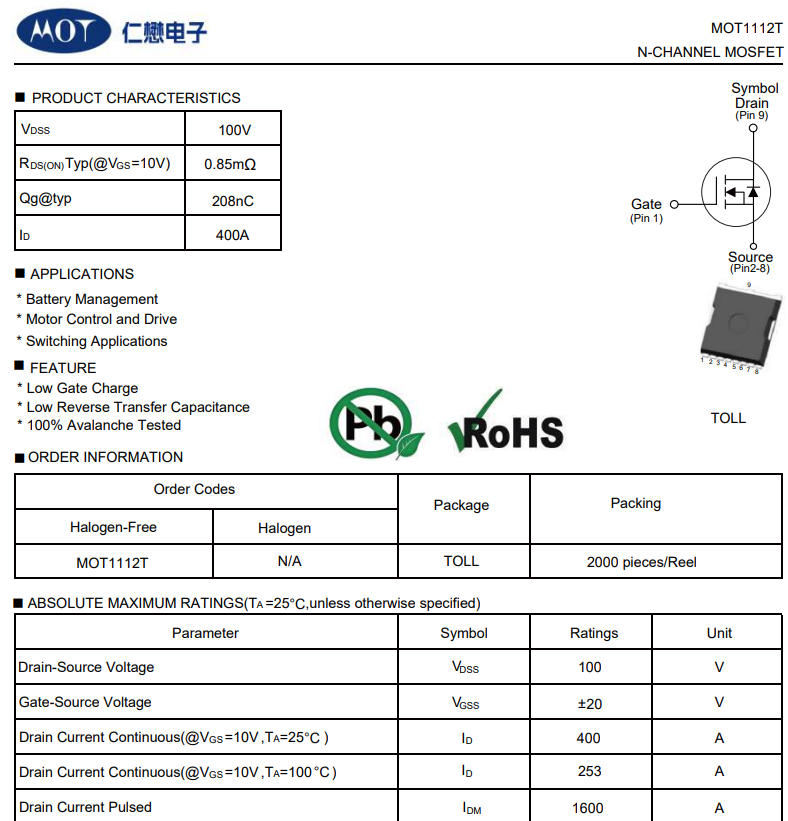

MOT1112T Specs: Features a typical RDS(on) of 0.85mΩ.

Value: This reduces conduction loss and lowers board temperature, often eliminating the need for bulky heatsinks.

3. Reliability: 100V Breakdown & 2300mJ Avalanche Energy

Safety: With a 100V V_DSS and 2300mJ single-pulse avalanche enerny (E_AS), it is built for the harshest inductive load switching.

Comparison with Tier-1 Brands:

MOT1112T offers a direct domestic alternative to Infineon’s IPT010N10N5 and ONSEMI’s NTLL012N10M1, providing equivalent RDS(on) with superior avalanche robustness and supply chain stability.



MOT1112T Performance: Delivers a continuous drain current (ID) of 400A (at Tc=25°C), maintaining 253A even at 100 °C.

Value: Provides a significant safety margin against pulse current surges.

2. Technical Superiority: 0.85mΩ Ultra-Low Resistance

Heat is the enemy of BMS reliability.

MOT1112T Specs: Features a typical R_DS(on) of 0.85mΩ.

Value: This reduces conduction loss and lowers board temperature, often eliminating the need for bulky heatsinks.

3. Reliability: 100V Breakdown & 2300mJ Avalanche Energy

Safety: With a 100V V_DSS and 2300mJ single-pulse avalanche energy (E_AS), it is built for the harshest inductive load switching.

Comparison with Tier-1 Brands:

MOT1112T offers a direct domestic alternative to Infineon’s IPT010N10N5 and ONSEMI’s NTLL012N10M1, providing equivalent R_DS(on) with superior avalanche robustness and supply chain stability.



Disclaimer:

The information provided is for reference purposes only and does not constitute technical advice or a binding offer. Users should verify all specifications against the official datasheet before implementation.
