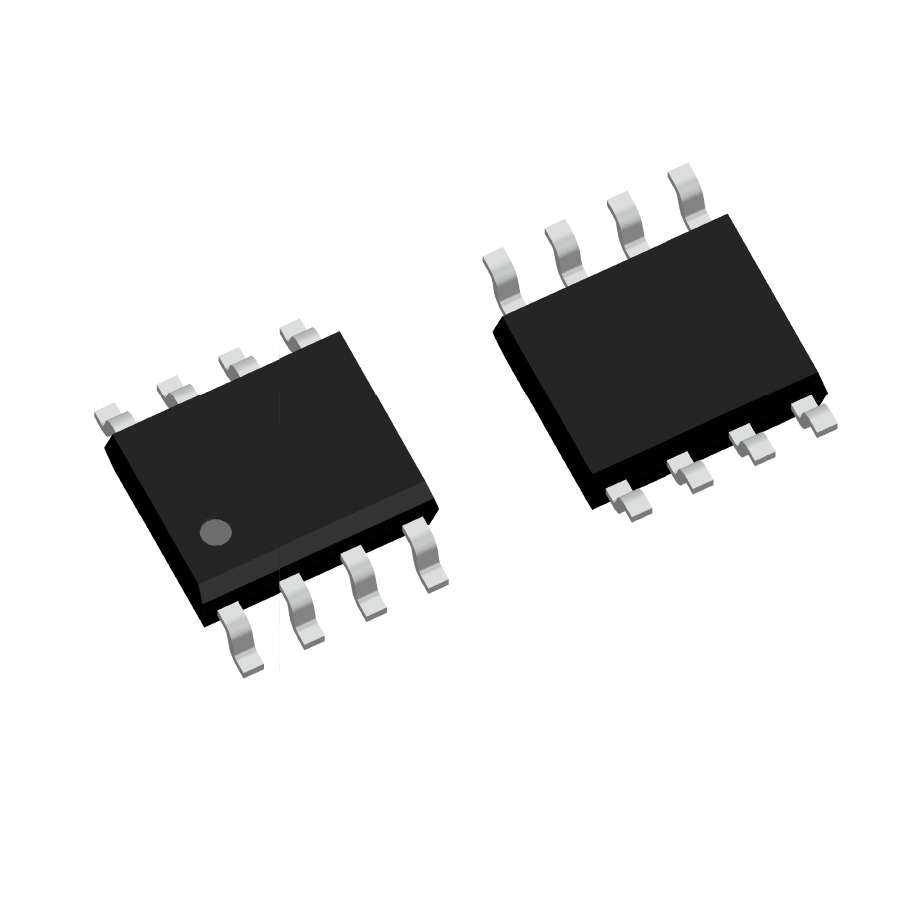

MOTL603-ACSR
MOTL603-ACSR
MOTL603-ACSR is a 3-string BMS protection IC manufactured by Guangdong Inmark Electronics Co., Ltd. It is famous for its high precision, high quality and high reliability. It is suitable for charging and discharging voltage detection, current control and other protection functions on 3-string lithium battery protection boards.
Product Overview
MOTL603-ACSR protection IC is a chip dedicated to the protection of 3-string lithium batteries. It has built-in high-precision voltage detection circuit and current detection circuit. By monitoring the voltage and charge and discharge status of 3 strings of lithium batteries in series, it controls the protection MOS tube and performs overcharge, over-discharge, discharge overcurrent, charge overcurrent, and short-circuit protection to protect the reliability and safety of lithium batteries and products in use.
Product Features
  • VDD
    VDD:30V
  • VM&CO Input voltage
    VM&CO Input voltage:30V
  • Overcharge protection voltage
    Overcharge protection voltage: 4.250V ±25mV
  • Over discharge protection voltage
    Over discharge protection voltage: 2.700V ±100mV
  • Discharge overcurrent protection voltage
    Discharge overcurrent protection voltage: 100mV ±30mV
  • Charging overcurrent protection voltage
    Charging overcurrent protection voltage: -45mV ±30mV
Application Areas
1. Electric hair dryer: high current power supply to ensure the safety and reliability of hair dryer products
2. Massage equipment: 3-series lithium battery charging and discharging control to ensure product safety
3. 2.4G remote control car: 3-series lithium battery charging and discharging current to ensure product quality
