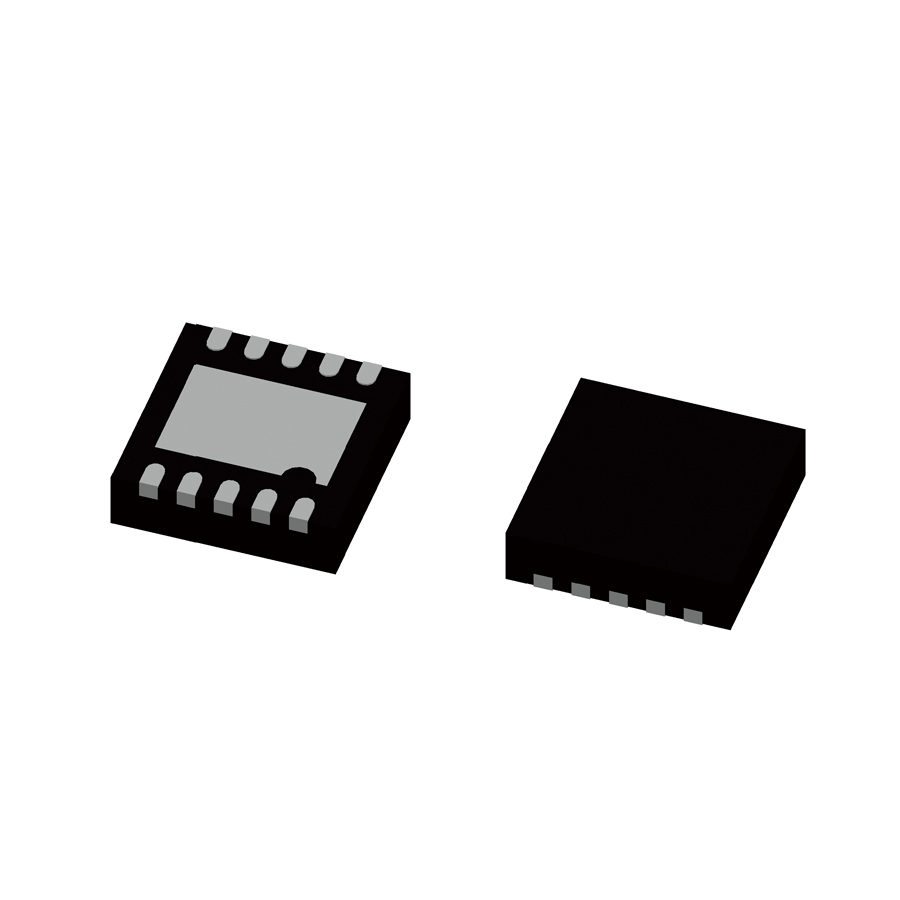

MOTF530-ES
MOTF530-ES
MOTF530-ES is a high-voltage version of a single-cell switch-type charge management IC manufactured by Guangdong Inmark Electronics Co., Ltd. It is known for its high precision, high quality and high reliability. It is suitable for charging voltage detection, current control and other management functions on single-cell lithium battery products such as electronic cigarettes, PAD players, toys, and audio.
Product Overview
MOTF530-ES is a high-performance single-cell high-voltage switch-type charging management IC. It can be powered by USB power or adapter power. It has built-in power MOSFET, detection resistor and isolation diode. It has high current charging and thermal regulation function. It can maximize the charging rate without the risk of overheating. The charging cut-off voltage is 4.2V, and the charging current can be set by an external resistor. When the charging current drops to 1/10 of the set value, the chip will automatically terminate the charging cycle. In addition, there are functions such as battery temperature monitoring, undervoltage lockout, and automatic recharging.
Product Features
  • VDD
    VDD:28V
  • OVP
    OVP: 6.3V
  • Charge cut-off voltage
    Charge cut-off voltage: 4.20V ±1%
  • Maximum charging current
    Maximum charging current: 2.5A
  • Low power consumption
    Low power consumption:under 1uA
Application Areas
1. PAD player: high-precision charging control to ensure product charging safety
2. Electronic cigarettes: fast charging to ensure product reliability
3. Toys, speaker products: high current charging to ensure fast charging and safety
