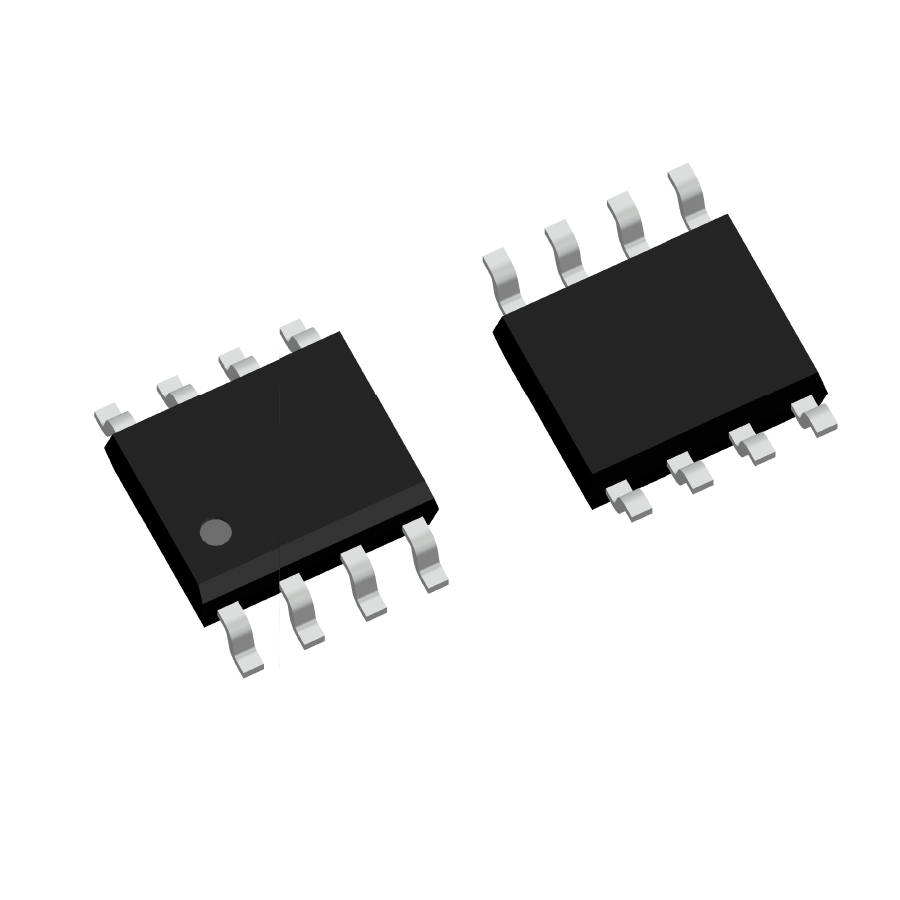

MOTF630-S
MOTF630-S
MOTF630-S is a boost type 3-cell lithium battery charge management IC manufactured by Guangdong Inmark Electronics Co., Ltd. It is known for its high precision, high quality and high reliability. It is suitable for charging voltage detection, current control and other management functions on 3-cell lithium battery products such as audio, 2.4G remote control car, fascia gun, etc.
Product Overview
MOTF630-S is an excellent performance boost type 3-cell lithium-ion battery constant current/constant voltage linear charging IC. It can be powered by USB power or adapter power 5V. It has external power MOSFET, detection resistor and isolation diode. It has thermal regulation function, which can maximize the charging rate without the risk of overheating. The charging cut-off voltage is 12.6V, and the charging current can be set by an external resistor. When the charging current drops to 1/10 of the set value, the chip will automatically terminate the charging cycle. In addition, there are battery temperature monitoring, undervoltage lockout, automatic recharging and other functions.
Product Features
  • VDD
    VDD:10V
  • Charge cut-off voltage
    Charge cut-off voltage: 12.60V ±1%
  • Maximum charging current
    Maximum charging current: 4A
  • Low power consumption
    Low power consumption:below 1uA
Application Areas
1. Speaker: high current fast charging to ensure product charging safety and reliability
2. 2.4G remote control car: high current fast charging to ensure product reliability
3. Fascia gun: control the charging time of large-capacity lithium batteries to ensure fast charging
