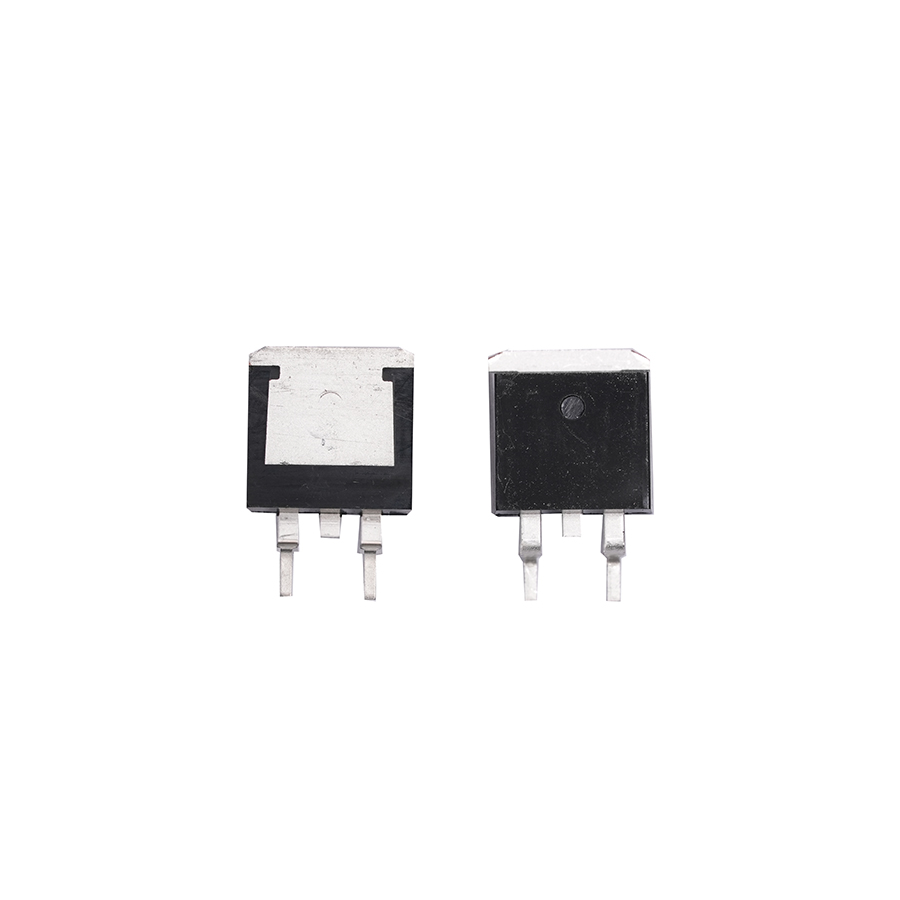

MOT15N10E
MOT15N10E
MOT15N10E is a middle-voltage and high-power N-Channel Mosfet manufactured by Guangdong Inmark Electronics Co., Ltd. The MOSFET is with low RDS(on), large ID current, large package size and low Qg(nC). It is suitable for various power supply switching applications.
Product Overview
MOT15N10E is a middle-voltage and high-power N-Channel Mosfet with VDS at 100V and ID at 15A. It has many benefits such as large package size, quick switching speed, low gate drive current, and high input impedance. Those highlight its cost-effective during the applications in vavious electronic devices, especially in situations where fast switching on-off and efficient energy conversion are required. It is mainly used for exchanger, load switch, UPS applications.
Product Features
  • VDss(V)
    :100V
  • ID(A)
    :15A
  • RDS(on)
    :80mΩ Typ@VGS=10V
  • VGS(th)
    :1.75V Typ
  • Qg(nC)
    :22.3nC Typ@VDS=80V
  • Ciss(pF)
    :980pF@VDS=25V
Application Areas
It is widely used in various application fields such as BMS, Motor drive, LED Lighting, Adapter, TV power supply and PC power supply etc.
