MOT2305AB2
MOT2305AB2

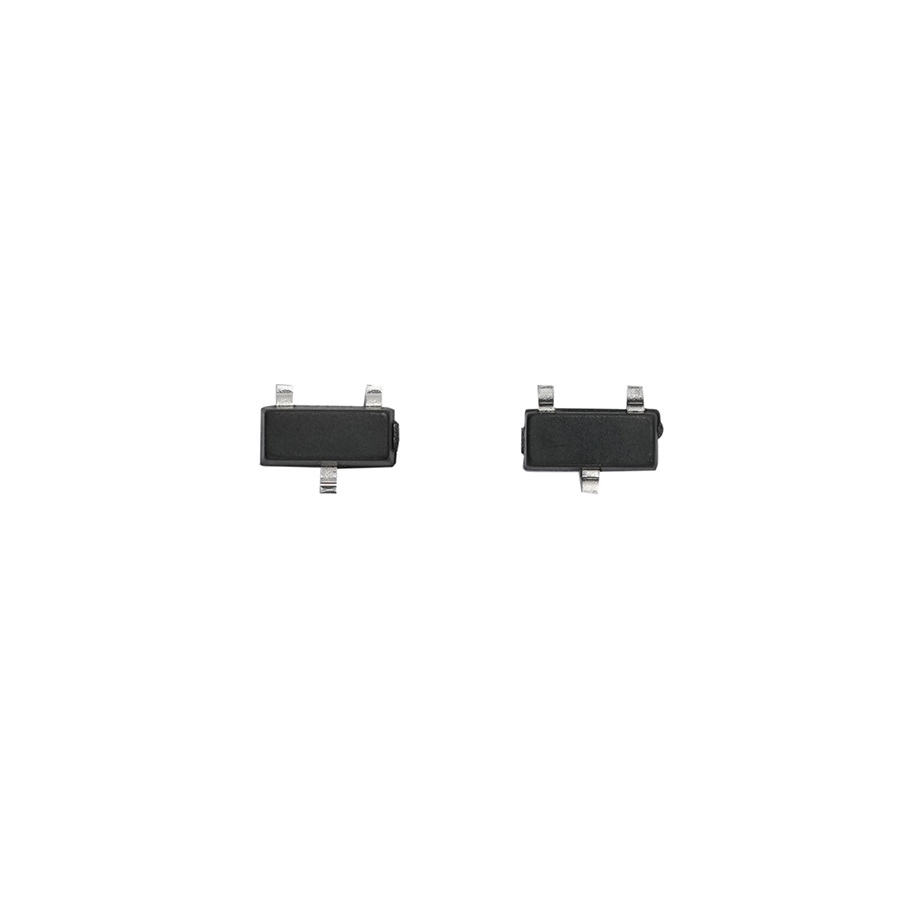

MOT2305AB2 is a P-Channel low-voltage small-signal MOSFET manufactured by Guangdong Inmark Electronics Co., Ltd. It has small ID current, small package size, high cost performance, and is a very common model with wide market applications.
Product Overview
MOT2305AB2 is a -20V P MOSFET with an ID current of -6A. It is a very commonly used MOS product on the market. It has the characteristics of small size, light weight, stability and reliability, low on-state internal resistance and high current carrying capacity, and low price. It is widely used in power supplies, electronic cigarettes, motor drives, and LED drive circuits. It is particularly suitable for high performance, miniaturization and low power consumption fields.
Product Features
  • VDS
    VDS:-20V
  • ID
    ID:-6A
  • RDS
    RDS:29 mΩ Typ@VGS= -4.5V
  • VGS(th)
    VGS(th):-0.75V Typ
  • Qg
    QgQg:12.5 nC Typ@VDS=-4V
Application Areas
Applicable to electronic cigarettes, electric toys, table lamps
